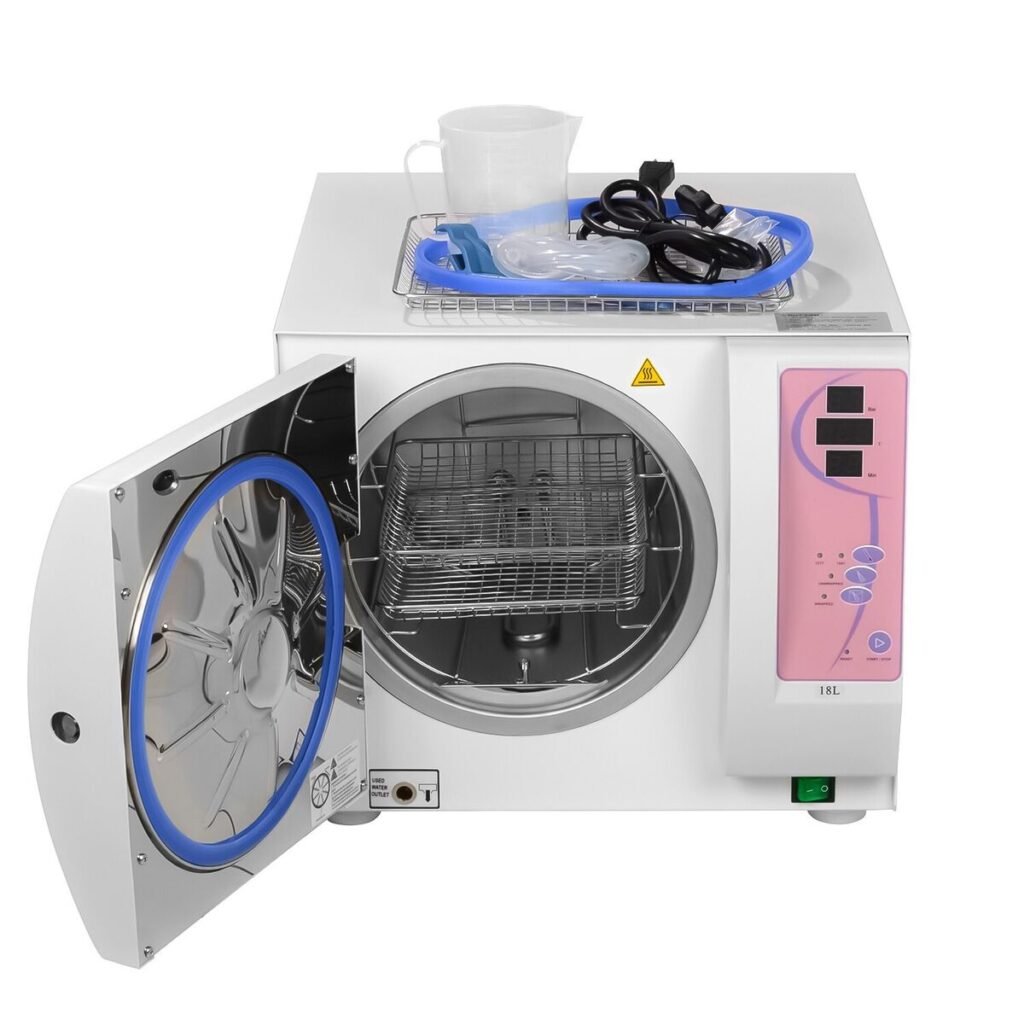

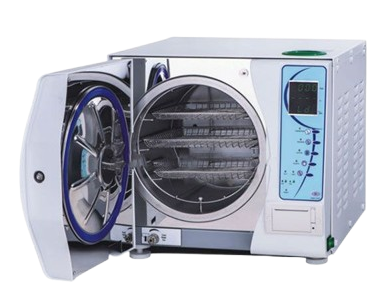

B-Class Pulsating Vacuum Sterilizer – SDM Series

By Ningbo Justop / Cland Medical Instruments Co. Ltd

Overview

The SDM Series B-Class Pulsating Vacuum Sterilizer is a high-performance sterilization solution designed to meet both international and national industry standards. With advanced pulsating vacuum technology and precise temperature control, it ensures reliable sterilization and efficient drying for medical and laboratory instruments.

Key Features

✅ Advanced Sterilization & Drying: Utilizes three pulsating vacuum cycles for superior drying and sterilization performance.
✅ High Vacuum Degree: Reaches up to 0.9 bar (-0.09 Mpa), with residual humidity below 0.2% for effective sterilization of packaged, unpackaged, solid, and hollow instruments.
✅ Computerized Control: Full automation with a high-brightness touch button for easy operation.
✅ Built-in Jet Steam Generator: Ensures uniform temperature and pressure, with an electronic double interlock system for enhanced safety.
✅ Integrated Printer & USB Data Storage: Automatically records sterilization process data for easy documentation.
✅ Error Alarm System: Quickly identifies and eliminates potential issues.

Specifications

• Chamber Size:
  • 12L: 200mm × 350mm
  • 18L: 250mm × 350mm
  • 23L: 250mm × 450mm
• External Dimensions:
  • 12L & 18L: 580mm × 430mm × 450mm
  • 23L: 680mm × 430mm × 450mm
• Rated Power:
  • 12L: 1500W
  • 18L & 23L: 2200W
• Voltage: ~220V ±22V, 50Hz ±1Hz
• Sterilization Pressure/Temperature: 90–130 kPa (121°C) | 200–230 kPa (134°C)
• Water Tank Capacity: 3.5L
• Water Consumption per Cycle: 0.2L–0.3L
• Minimum Alarm Level of Water Tank: 0.5L
• Operating Temperature: 0–40°C
• Packaging: Securely packed in wooden cases for safe transportation.

Ideal for:

🔹 Medical Clinics
🔹 Laboratories
🔹 Dental Practices
🔹 Surgical Centers

Upgrade your sterilization process with the SDM Series B-Class Pulsating Vacuum Sterilizer for maximum efficiency, reliability, and ease of use.
